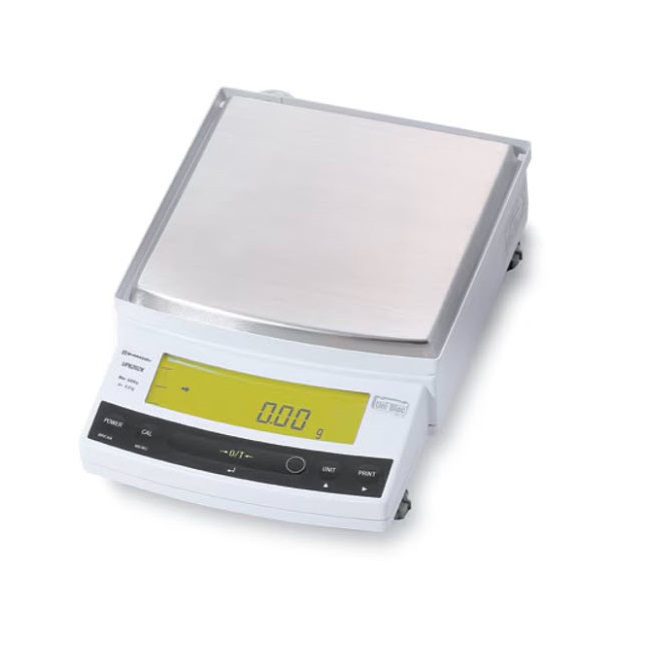

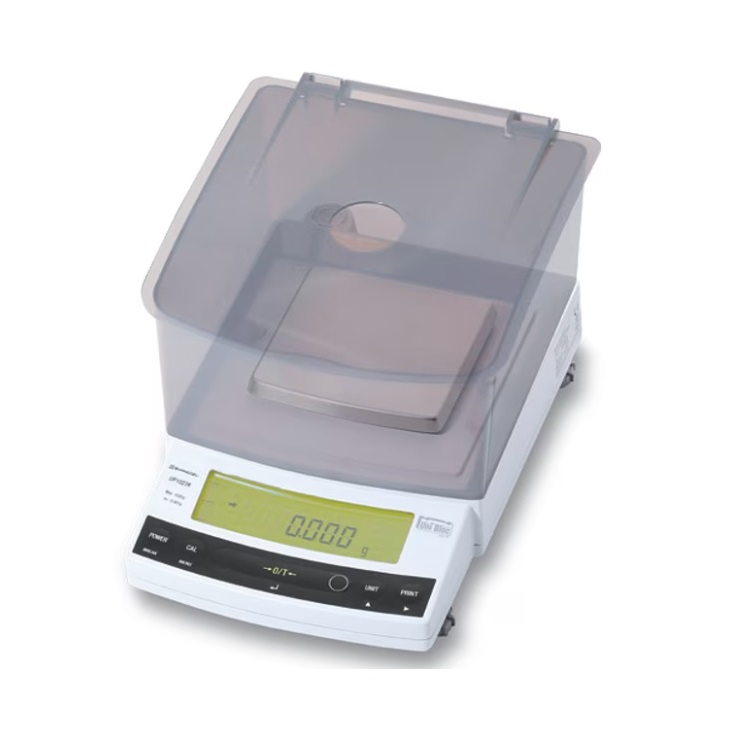

Shimadzu – UP Series Precision Balance

4,315.00 AED - 5,440.00 AED

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Scale Division

Weighing Scale Capacity

Clear

4,315.00 AED - 5,440.00 AED

Model

Scale Division

Weighing Scale Capacity

Clear

4,315.00 AED - 5,440.00 AED

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Scale Division

Weighing Scale Capacity

Clear

4,315.00 AED - 5,440.00 AED

Model

Scale Division

Weighing Scale Capacity

Clear

[woocommerce_variations_table]

Specifications and Options:

Series	X Series with 0.001 g Minimum		Series Y with 0.01 g Minimum
Model	UP623X	UP6202X	UP623Y	UP6202Y
Capacity	620 g	6200 g	620 g	6200 g
Minimum Display	0.001 g	0.01 g	0.001 g	0.01 g
External Calibration Weight Range for Span Calibration	100 to 620 g	1000 to 6200 g	100 to 620 g	1000 to 6200 g
Repeatability (at Weighing Capacity)	0.001 g	0.01 g	0.001 g	0.01 g
Linearity	+ 0.02 g	+ 0.02 g	+ 0.02 g	+ 0.02 g
Response Time (*1)	Approx. 1 sec.	Approx. 1 sec.	Approx. 1 sec.	Approx. 1 sec.
Sensitivity Stability Against Temperature Range	3 ppm/Â°C (10 to 30Â°C)	3 ppm/Â°C (10 to 30Â°C)	3 ppm/Â°C (10 to 30Â°C)	3 ppm/Â°C (10 to 30Â°C)

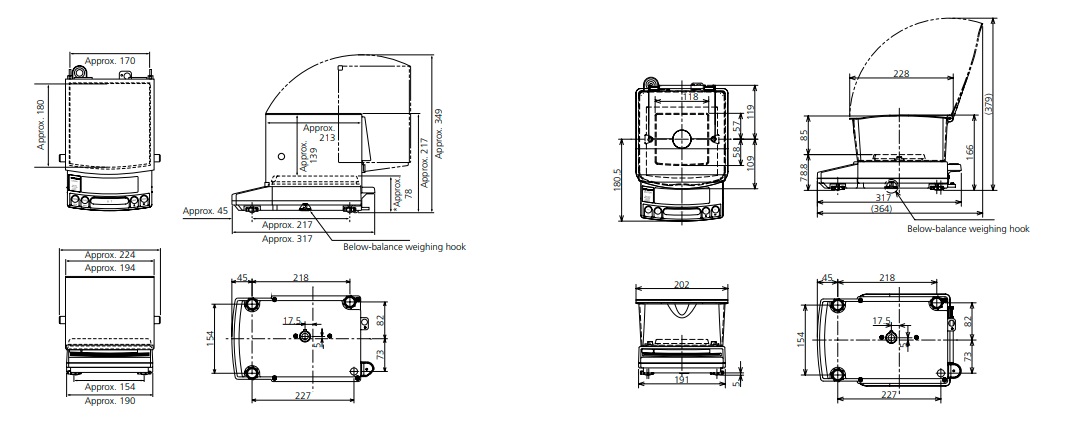

Pan Size	Approx. 108 x 105 mm	Approx. 170 x 180 mm	Approx. 108 x 105 mm	Approx. 170 x 180 mm
Weight	Approx. 3.4 kg	Approx. 4.6 kg	Approx. 2.7 kg	Approx. 2.9 kg

Options and Peripheral Equipment:

Ionizer for Electronic Balance (Static Remover) STABLO-AP
Printer EP-100
Printer EP-110
RS-232C Cable 25P-9P (1.5 m)
USB–Serial Replacement Kit
Application Keyboard AKB-301
Windbreak Set (*1)
Windbreak Set (for large pan) (*2)
Glass Windbreak WBC-102
Large Size Windbreak WBC-502
In-Use Protective Cover (3 pcs) (For Large-Pan Models with 0.01 g Min. Display Value)
In-Use Protective Cover (5 pcs) (For Large-Pan Models with 0.1 g Min. Display Value)
In-Use Protective Cover (5 pcs) (For Small-Pan Model)
In-Use Protective Cover (5 pcs) (For Display and Key Part)
Animal Bucket Set (for Large Pan Models with 0.01 g Minimum Display Value)
Animal Bucket Set (for Large Pan Models with 0.1 g Minimum Display Value)
Speci¡c Gravity Measurement Kit SMK-101A (For Large Pan Model) (Up to approximately 2kg for weighing capacity)
Speci¡c Gravity Measurement Kit SMK-102 (For Small Pan Model)
Remote Display RDB-201
Remote Display RDB-202
Relay Output Interface IFB-RY1
RY1 Connection Cable
AC Adapter (*3)
